FIRE RESISTANT CABLE 4X1,5mm PH120 Stranded Conductor 100m
FIRE RESISTANT CABLE 4X1,5mm PH120 Stranded Conductor 100m - Image 2

FIRE RESISTANT CABLE 4X1,5mm PH120 Stranded Conductor 100m

€200.00

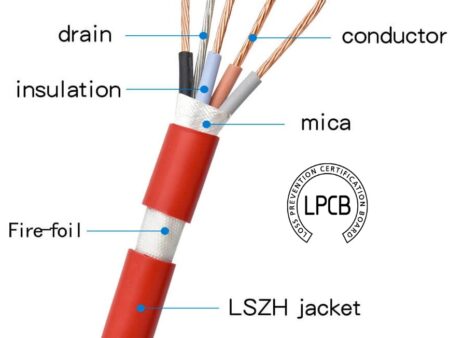

Conductor:

2X1.5mm2 stranded Bare Copper

Nom.Dia:0.0618±0.0020″(7/0.52±0.008mm)

Fire-fighting cables are mainly used for emergency lighting, fire observation, signal sensing system, blower system, communication call system, control equipment system, fire pump and fire alarm system circuit cables, etc.

For example: ★ Office ★ School ★ Airport ★ Underground and tunnel ★ Railway station ★ Computer center ★ Alarm system ★ Traffic control system ★ Fire protection system

Category:
Add to Wishlist

Conductor:

2X1.5mm2 stranded Bare Copper

Nom.Dia:0.0618±0.0020″(7/0.52±0.008mm)

Insulation:

Type.silicone rubber

Dia over Insulation:0.1189±0.0040″ nom.(3.0±0.1mm)

Drain Wire:7/0.52±0.008mm stranded Tinned-Copper

Shield:0.0047″(0.120mm)thick Fireproof aluminum foil

Color Code:

1.Brn 2.Blk 3.Gry 4.Blue

Jacket:

Type.LTS3

Color.Red

Dia over Jacket:0.4004±0.0118″(10.2±0.3mm)

 Electrical Properties:

  1. Temperature Rating：-40℃～+90℃
  2. Operating Voltage：300 /500V
  3. Withstand voltage test ：
  4. Between insulated conductors，AC: 2000V / 5min, no breakdown
  5. Between insulated conductor and ground wire，AC: 1000V / 5min, no breakdown
  6. Maximum resistance：12.1 0hms/KM at 20℃
  7. Application of insulation ：EN50363-1、EN50363-2-1、BS2683
  8. Inner Conductor Diameter：BS EN 60228
  9. Insulation：EN50363-1、EN50363-2-1、BS2683
  10. Sheath ：EN7655-6.1、BS EN50267-2-1BS60754、BS2683
  11. Smoke emission：EN 61034-2: 2005+A2:2020
  12. Corrosive and acid gas：EN 60754-1: 2014
  13. Flame propagation on a single cable：EN 60332-1-2:2004
  14. Fire resistance(single cable) ：BS6387、BS EN50200、BS 8434-2
  15. Fire resistance time：PH30-PH120
  16. Guide for safe use of cables：BS5839-1
