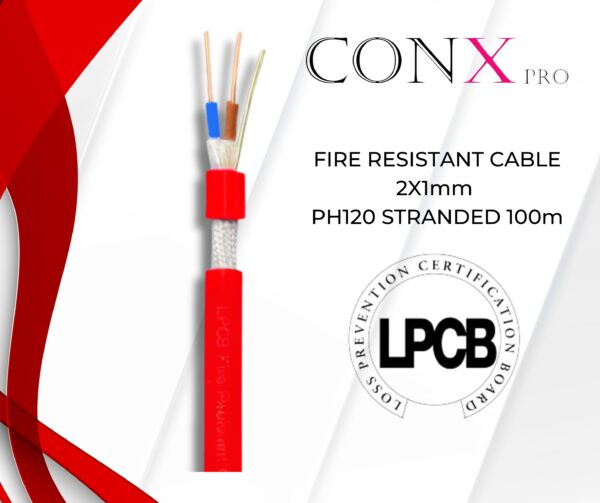

FIRE RESISTANT CABLE 2X1mm PH120 LPCB STRANDED 100m
FIRE RESISTANT CABLE 2X1mm PH120 LPCB STRANDED 100m - Image 2

FIRE RESISTANT CABLE 2X1mm PH120 LPCB STRANDED 100m

€100.00

Fire-fighting cables are mainly used for emergency lighting, fire observation, signal sensing system, blower system, communication call system, control equipment system, fire pump and fire alarm system circuit cables, etc.

For example: ★ Office ★ School ★ Airport ★ Underground and tunnel ★ Railway station ★ Computer center ★ Alarm system ★ Traffic control system ★ Fire protection system

Conductor:

1.0mm2 stranded Bare Copper

Nom.Dia:0.0504±0.0020″(7/0.43±0.008mm)

Insulation:

Type.silicone rubber

Dia over Insulation:0.0996±0.0040″ nom.(2.5±0.1mm)

Drain Wire:7/0.43±0.008mm stranded Tinned-Copper

Shield:0.0047″(0.120mm)thick Fireproof aluminum foil





Category:
Add to Wishlist

2×1.0mm2 stranded Bare Copper

Nom.Dia:0.0504±0.0020″(7/0.43±0.008mm)

Insulation:

Type.silicone rubber

Dia over Insulation:0.0996±0.0040″ nom.(2.5±0.1mm)

Drain Wire:7/0.43±0.008mm stranded Tinned-Copper

Shield:0.0047″(0.120mm)thick Fireproof aluminum foil

Color Code:

1.Brn2.Blue

Jacket:

Type.LTS3

Color.Red

Dia over Jacket:0.3047±0.0118″(7.7±0.3mm)

  1. Temperature Rating：-40℃～+90℃
  2. Operating Voltage：300 /500V
  3. Withstand voltage test ：
  4. Between insulated conductors，AC: 1000V / 5min, no breakdown
  5. Maximum resistance：18.1 0hms/KM at 20℃
  6. Application of insulation ：EN50363-1、EN50363-2-1、BS2683
  7. Inner Conductor Diameter：BS EN 60228
  8. Insulation：EN50363-1、EN50363-2-1、BS2683
  9. Sheath ：EN7655-6.1、BS EN50267-2-1BS60754、BS2683
  10. Smoke emission：EN 61034-2: 2005+A2:2020
  11. Corrosive and acid gas：EN 60754-1: 2014
  12. Flame propagation on a single cable：EN 60332-1-2:2004
  13. Fire resistance(single cable) ：BS6387、BS EN50200、BS 8434-2
  14. Fire resistance time：PH30-PH120
  15. Guide for safe use of cables：BS5839-1
