PRODUCT DATA SHEET

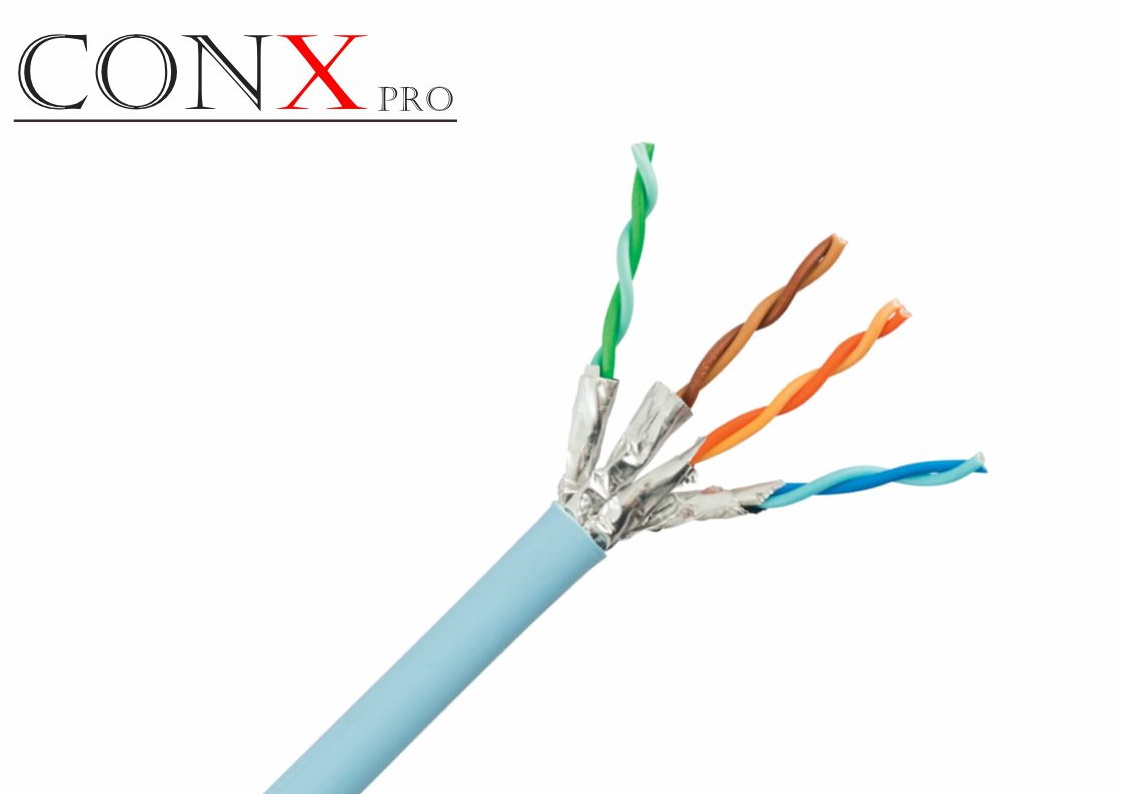

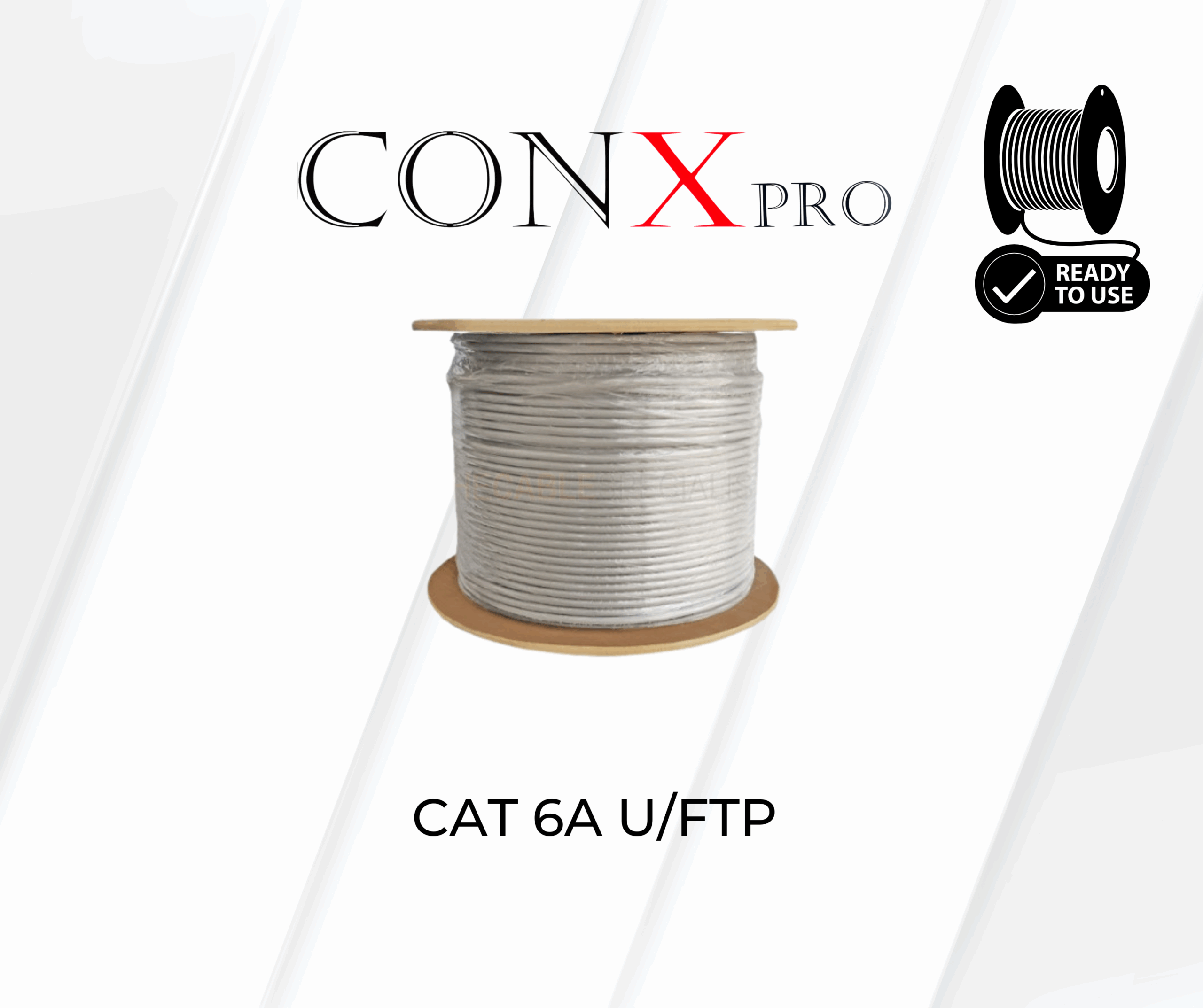

U/FTP Cat 6A Copper Cables for Indoor Applications
| Type | U/FTP CAT6A 4*2*23AWG LSZH | ||
| Application | |||
| Suitable for structured premises cabling | |||
| For transm ission of digital and analogue voice and data signals. | |||
| Especially suitable for all Class EA applications. | |||
| ISDN,Ether net 10 Base-T,Fast Ethernet 100 Base-T,Gigabit Ethernet 1000Base-T ,10G Base-T.(IEEE 802.3) | |||
| Token Rin g4/16Mbit/s,TP-PMD/TP/DDI 125Mbit/s,ATM 155Mbit/s.(IEEE 802.5 ) | |||
| Standard | |||
| IEC/ISO 6 1156-5 | |||
| ANSI/TIA5 68C.2 | |||
| ISO/IEC 1 1801 | |||
| Construction | |||
| Conductors | Material | ———- | Solid Bare Copper |
| Conductors Size | mm | 0.56+/-0.01 | |
| Insulation | Material | ———- | PE(Skin-Foam-Skin) |
| Diameter | mm | 1.36+/-0.05 | |
| Average Thickness | mm | 0.40+/-0.05 | |
| Assembly | Direction | ———- | S |
| No. of Insulation | Pair | 4 | |
| Shielding | Material | ———- | Al-Foil Screneed |
| Drain wire | Material | ———- | 26AWG TC |
| Jacket | Material | ———- | LSZH |
| Diameter | mm | 7.4+/-0.3 | |
| Average Thickness | mm | 0.60+/-0.1 | |
| Flame Rate | ———- | ———- | |
| Electrical characteristics | |||
| 1.Impedance | 1 – 100MHz 100±15 (ohms) 5.Transfer Impendance Max10 mohms/m@100MHz | ||
| 100 – 200MHz 100±22 (ohms) 6 Coupling Attenuation Min 80 dB | |||
| 200 – 500MHz 100±32 (ohms) 7.Installation temperature 0~50℃ | |||
| 2.Max. Conductor DC Resistance 20℃ ≤93.8(ohms/km) 8.Operation temperature -20~60℃ | |||
| 3.Resistance unbalance (%) max 2.5 | |||
| 4.Pair-to-Ground Capacitance Unbalance 330 (pF/100m) | |||
PRODUCT DATA SHEET
U/FTP Cat 6A Copper Cables for Indoor Applications
| Type | U/FTP CAT6A 4*2*23AWG LSZH | |||||||
| Nominal Transmission Characteristics | ||||||||
| Frequence | Min.
RL |
Min.
IL |
Max.
DOP |
Max.
SKEW |
Min.
NEXT |
Min.
PSNEXT |
Min.
ACR-F |
Min.
PSACR- F |
| (MHz) | (dB) | (dB/100M) | (ns/100M) | (ns/100M) | (dB) | (dB) | (dB/100M) | (dB/100M) |
| 1 | 20.0 | 2.1 | 570 | 45 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23.0 | 3.8 | 552 | 45 | 65.3 | 63.3 | 55.8 | 52.8 |
| 8 | 24.0 | 5.3 | 546 | 45 | 60.8 | 58.8 | 49.7 | 46.7 |
| 10 | 25.0 | 5.3 | 545 | 45 | 59.3 | 57.3 | 47.8 | 44.8 |
| 16 | 25.0 | 7.5 | 543 | 45 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25.0 | 8.4 | 542 | 45 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.5 | 540 | 45 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.0 | 539 | 45 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.1 | 538 | 45 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18.0 | 27.6 | 537 | 45 | 39.8 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 34.3 | 536 | 45 | 37.1 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 40.1 | 536 | 45 | 35.3 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 536 | 45 | 33.8 | 31.8 | 13.8 | 10.8 |
