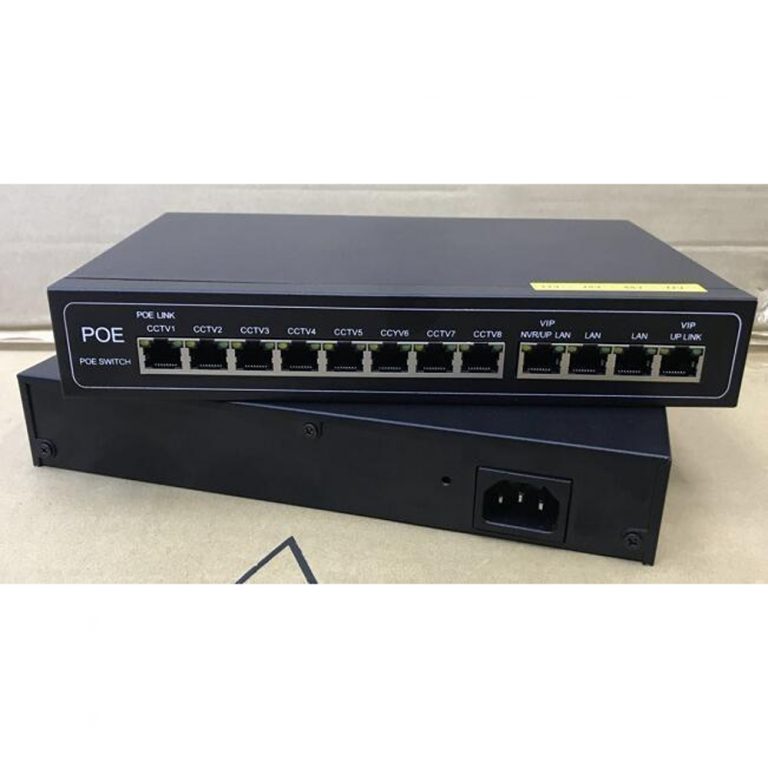

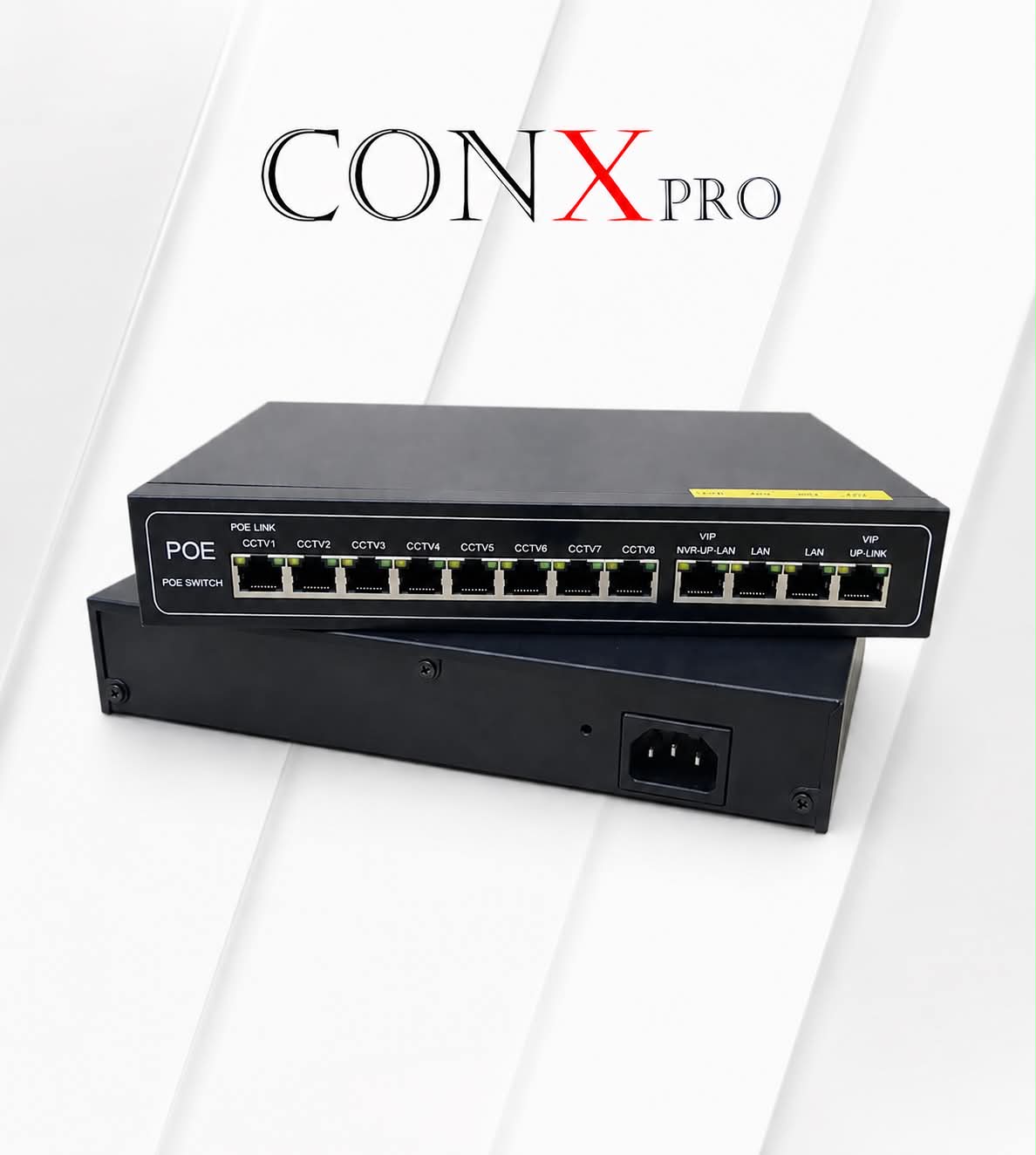

8FE (PoE)+2FE PoE is a non-managed PoE switch with eight 100-megabit adaptive RJ45 ports and two Gigabit RJ45 ports. Each RJ45 port supports mdi/mdix auto flip and line speed forwarding functions. among them,1-8 ports have poe power supply function, support iee 802.3af/at standard, can be used as ethernet power supply equipment, can automatically detect and identify the receiving equipment that meets the standard, and supply power to it through the network cable. Using storage forwarding technology, combined with dynamic memory allocation, the bandwidth is effectively allocated to each port.
8FE (PoE)+2FE PoE Switch is easy to use, no configuration, plug and play, flexible expansion of home, office network without power line layout restrictions, easy to manage and maintain, to meet the enterprise, residential, hotel, office and park network networking and access requirements.
●The maximum output power of a single port is 15.4 W; at/30W
●Automatic PD detection equipment;
●Automatic detection and identification standard PoE electrical equipment,
intelligent power supply, will not burn non-standard PoE electrical equipment or common equipment;
●Support port power priority to ensure continuous power supply to key nodes of the network;
●IEEE 802.3x full duplex flow control and Backpressure half duplex flow control;
●Iron shell, no fan;
●panel indicator to monitor working status and help fault analysis.
●Improved security mechanisms
●Line Speed Forwarding Intelligent identification
●Data exchange adopts storage-forwarding mode;
●Working temperature:0°C ~40°C
Product specifications：
Product Name
8FE (Poe)+2FE Poe switch
Ports
8×10/100Mbps POE self-negotiated RJ45 port
2×10/100Mbps self-negotiated RJ45 port
PoE Standard
IEEE802.3af/at
PoE Port
Port 1~8
Power supply
120W MAX144 W
RJ45 PoE Power Supply
Mode A positive electrode 1/2 negative electrode 3/6
(Custom power supply mode 4 / 5 V + 7 / 8 V-)
PoE port output
Maximum 15.4 W/30W
Type of forwarding
Storage forwarding
Exchange capacity
1.6 G
MAC Address Table
1K, automatic learning, automatic aging
VLan / 250extend
Support customization
Input voltage
AC 100-240V 50/60Hz
Working temperature
0℃~40℃
Storage temperature
-40℃~70℃
Working humidity
10%-90% RH does not clot
Storage humidity
5%-90% RH does not clot
Appearance Size (L*W*H)
155 *118 *45 mm
Machine weight
Product weight(0.52 Kg) , Packing weight (0.66Kg) /0.62/0.76
