Model
EW-S1811CG-AP
Fixed Port

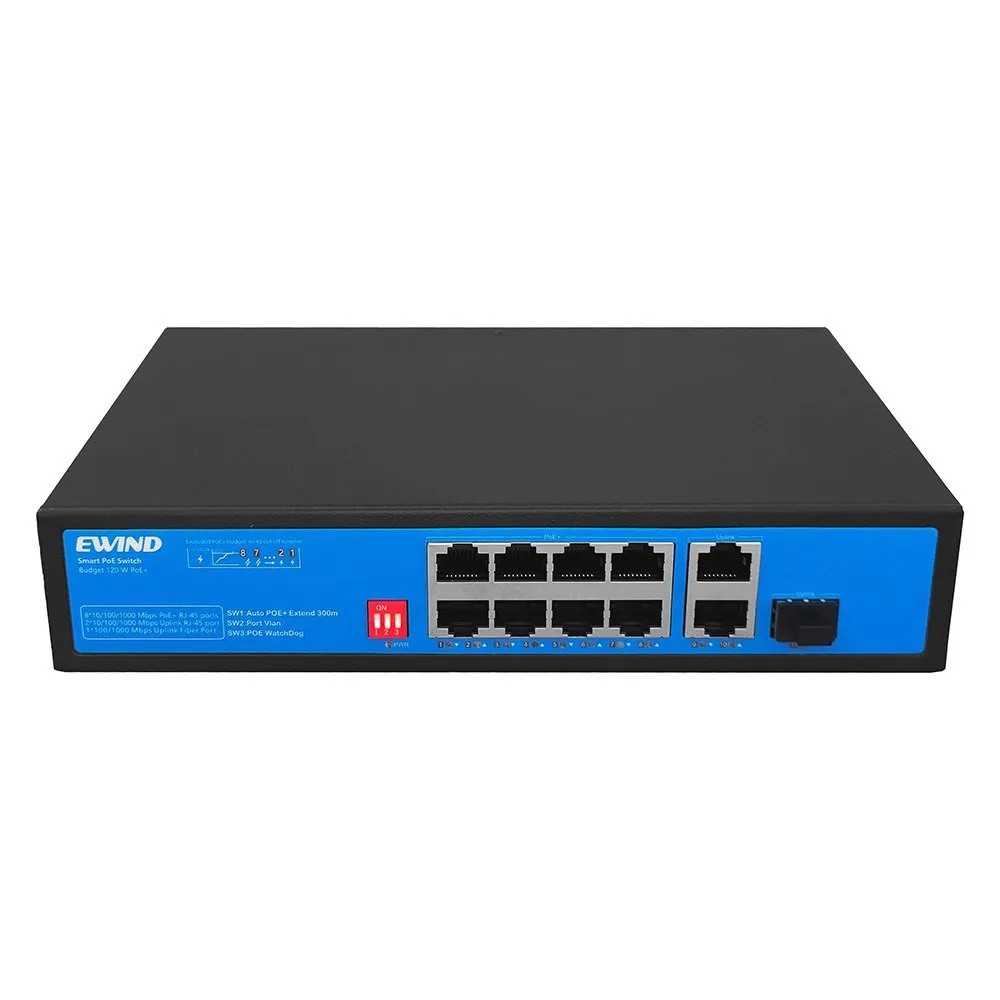

8*10/100/1000Base-T/TX PoE ports (Data/Power)
2*10/100/1000Base-T/TX Uplink RJ45 ports (Data)
1*10/100/1000Base-T/TX SFP Ports(Data)
POE Port
Port 1-8 support PoE
Feature
With the Dial code switch, support port priority by default.
E: AI Extend 300meters transmission and auto speed change of single port (limit 10Mbps), other ports maintain 100M/1000M within 100 meters;
V: Turn on, 1-8 Port support each port Isolation & VLAN;
D: Turn on, 1-8 Port support AI-PoE Network self-healing mode (PoE Watchdog function), Automatic solve the camera problem &reduce after-sale.
Network Protocol
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;
IEEE802.3u 100Base-TX;
IEEE802.3ab 1000Base-T;
IEEE802.3x
Ethernet Port Feature
10/100Base–T(X) 10/100/1000 Base-T automatic detection, full/half Duplex MDI/MDI-X adaptive
Fiber Port Feature
Gigabit SFP Port (Fiber module is not included, need to order separately, module options include single/multi-mode, single/dual fiber, LC)
Forwarding Mode
Store and Forward
Switching capacity
22Gbps
Buffer Memory
4M
MAC
4K
Forwarding Rate
16.368Mpps
Twisted Pair Transmission
10BASE-T: Cat5 UTP (≤300 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter)
1000BASE-T: Cat5 or later UTP (≤100 meter)
Power Supply Pin
Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port
30W/15.4W
Total PWR / Input Voltage
120W
Power Consumption

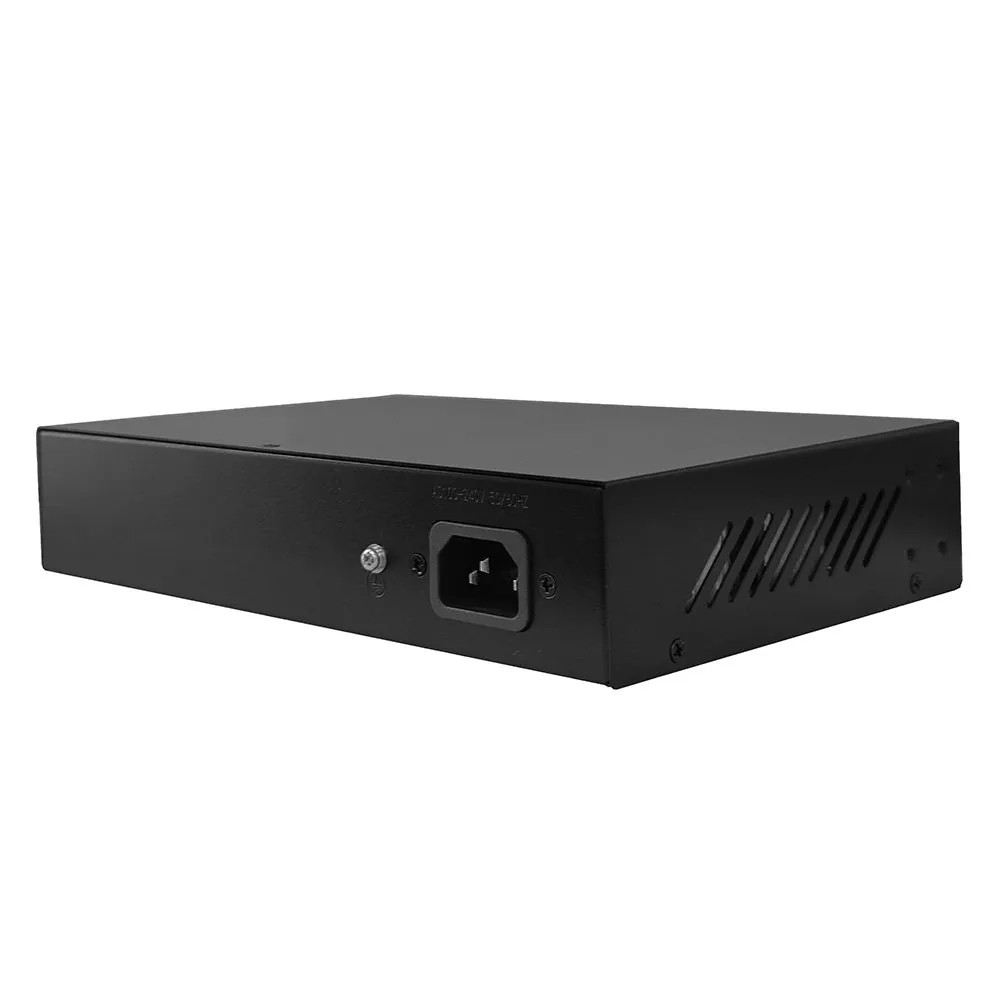

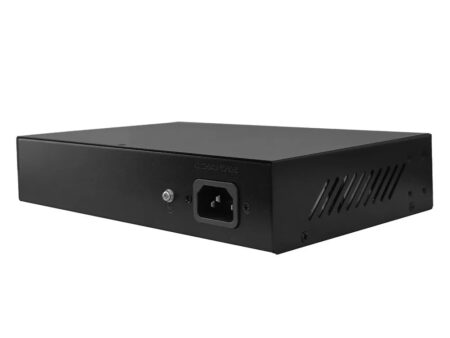

Standby:<2W; Full load:<120W LED Indicator Power indicator: PWR (Green); Network indicator: 1-8(Link/Act)/ (Green),9–11(Link/Act)/ (Green) Power Supply Build-in power adaptor AC100~240V 50-60Hz,120W Operation TEMP / Humidity -20~+55°C:5%~90% RH non condensing Storage TEMP / Humidity -40~+75°C;5%~95% RH non condensing Dimension 220*145*45mm Net /Gross Weight <1kg / <1.2kg Installation Method desktop type, wall mounted Protection IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV Protection Level IP30 Certification CCC; CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS Warranty 2 years, lifetime maintenance.
