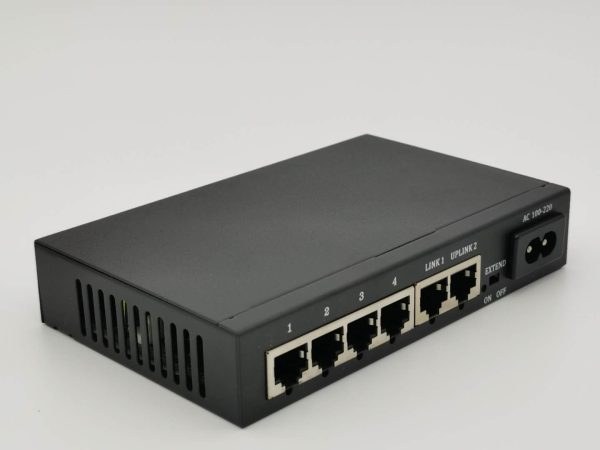

NF1006GBM45Â╚A

4FE(PoE)+2FE PoE Switch

Category:

The 4FE (Poe)+2FE Poe switch is a non-managed Poe switch with six 100-megabit adaptive RJ45 ports. Each RJ45 port supports MIDI/mdix auto flip and line speed forwarding functions. where 1-4 ports have poe power supply function, support ieee 802.3af/at standard, can be used as Ethernet power supply equipment, can automatically detect and identify the receiving equipment that meets the standard, and power it through the network cable, adopt storage and forwarding technology, combine with dynamic memory allocation, ensure the bandwidth is allocated to each port effectively.

Description

Product characteristics:

●Support IEEE 802.3af /at standard, compatible with IEEE 802.3at receiving equipment (PD);
●The maximum output power of a single port is 15.4 W; at/30W
●Automatic PD detection equipment;
●Automatic detection and identification standard PoE electrical equipment,
intelligent power supply, will not burn non-standard PoE electrical equipment or common equipment;
●Support port power priority to ensure continuous power supply to key nodes of the network;
●IEEE 802.3x full duplex flow control and Backpressure half duplex flow control;
●Iron shell, no fan;
●panel indicator to monitor working status and help fault analysis.
●Improved security mechanisms
●Line Speed Forwarding Intelligent identification
●Data exchange adopts storage-forwarding mode;


Product specifications:

Product Name 4FE (Poe)+2FE  Poe switch
Ports 6×10/100Mbps self-negotiated RJ45 port
PoE Standard IEEE802.3af/at
PoE Port Port 1~4
Power supply 60W MAX72 W
RJ45 PoE Power Supply Mode A positive electrode 1/2 negative electrode 3/6
(Custom power supply mode 4 / 5 V + 7 / 8 V-)
PoE port output Maximum 15.4 W/30W
Type of forwarding Storage forwarding
Exchange capacity 1.6 G
MAC Address Table 1K, automatic learning, automatic aging
VLan / 250extend  Support customization
Input voltage AC 100-240V 50/60Hz
Working temperature 0℃~40℃
Storage temperature -40℃~70℃
Working humidity 10%-90% RH does not clot
Storage humidity 5%-90% RH does not clot
Appearance Size (L*W*H) 149 *93 *28 mm
Machine weight Product weight(0.36 Kg) , Packing weight (0.45Kg)
Package specification 30SET   W*D*H 435*345*195     14.5Kg
Network media 10BASE-T: Cat 3,4,5 unshielded twisted pair (£100m)
100BASE-TX: Cat5 and above unshielded twisted pair (£100m)
Lightning Level ±4KV
authentication CE FCC
