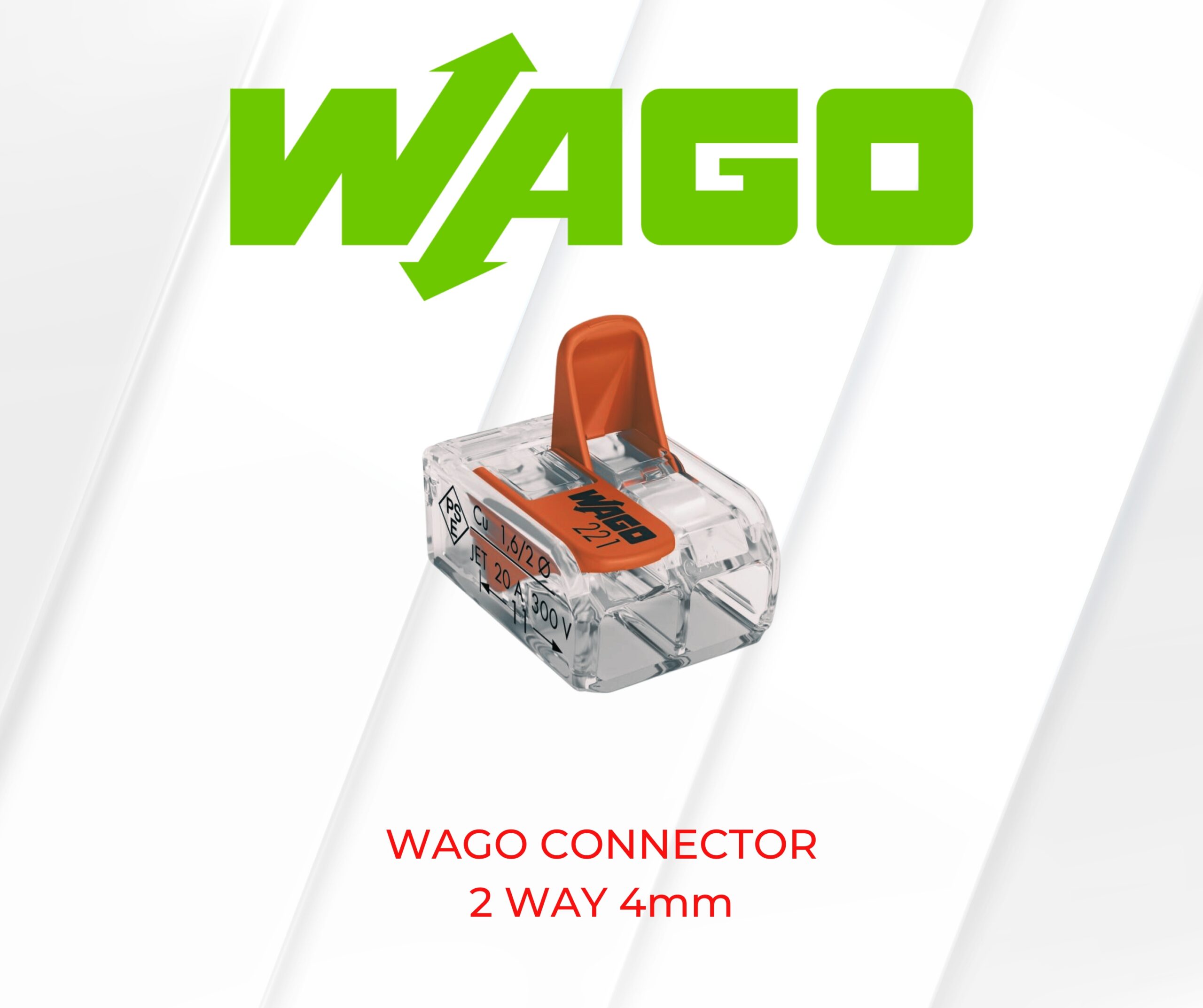

Wago 2way Terminal Block
€0.45
- Ease of use – pull the lever up, insert a conductor and push the lever back down
- Available as 2-, 3- and 5-wire connectors
- Easily terminate conductors from 0.14 to 4 mm²
- Connect solid, stranded and fine-stranded conductors
- Save time for installers and device manufacturers
- Quickly install devices with higher power consumption
- Safely install long cable runs with larger conductor cross sections
- Mounting carrier for installation conforms to standards
- Custom carriers are possible
Specifications
Attribute | Value |
Brand | Wago |
Wire Size | 0.5 → 6 mm², 20 → 10 AWG |
Current Rating | 41 A |
Mounting Type | Cable Mount |
Number of Ways | 2 |
Termination Method | Spring Cage |
Colour | Clear |
Cable CSA | 6 mm² |
Fused | No |
Series | 221 |
Contact Material | Copper |
Voltage Rating | 450 V |
Maximum Operating Temperature | +105 °C |
Gender | Female |
Enclosed | Yes |
Category: Accessories
