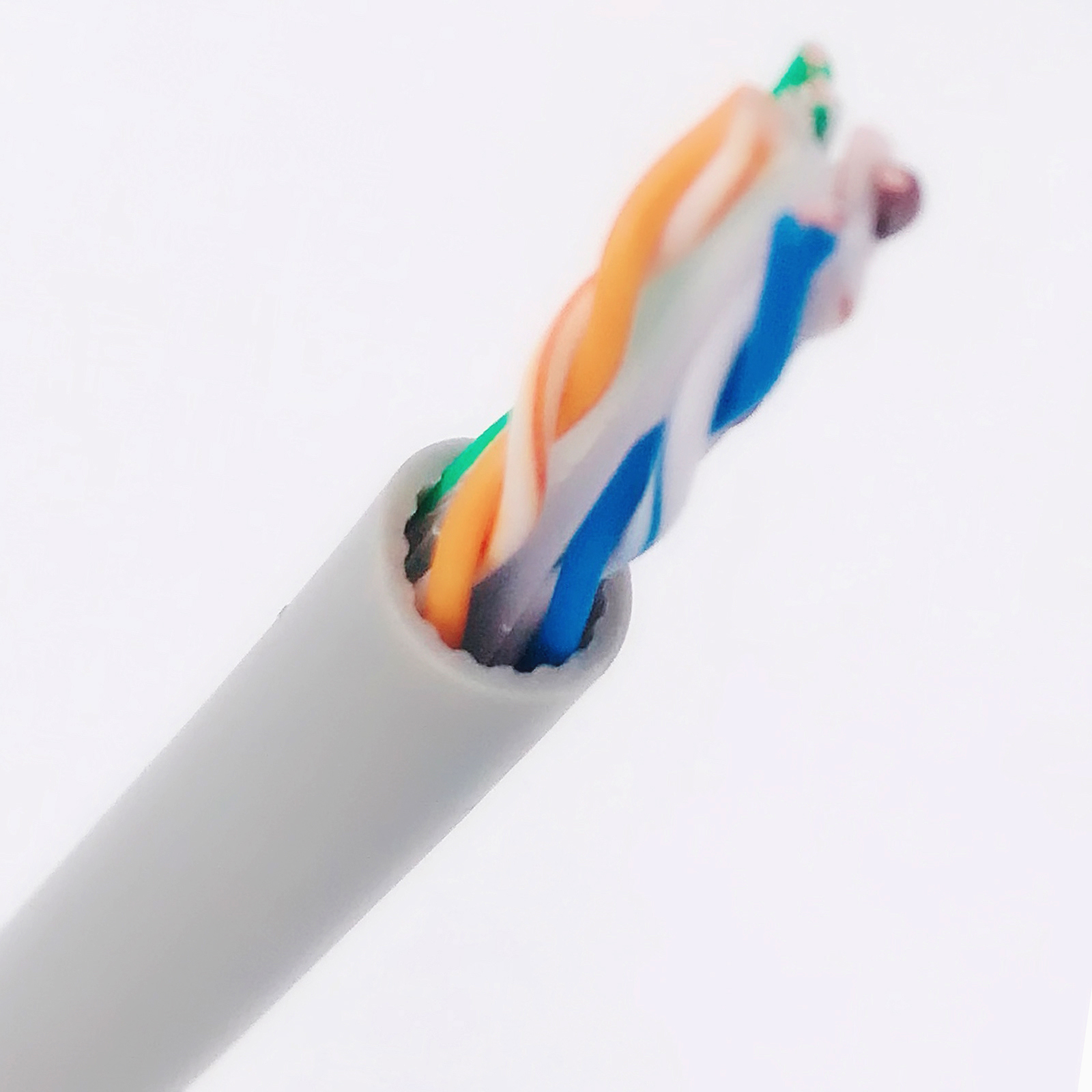

Aplication
10GBASE-T 、 1000BASE-T 、 100BASE-T 、 10BASE-T
1Volp、ISDN、 Token、 100MTPPDM、 Analogand Datavideo
Electrical Characteristics
DC Resistance ＜9.38 Ohms/100m @20℃
DC Resistance unbalance 4% @ 20℃
Mutual Capacitance 5.6 nF/100m
Characteristic Impedance 1 – 100 MHz : 100±15 Ohms 100 – 200 MHz : 100±22 Ohms 200 – 500 MHz : 100±32 Ohms
Max Frequency 500MHz
Capacitance Unbalance 330 pF/100m
PHYSICAL PROPERTIES
Pulling Tension(Max) ≥13.5Mpa
Bend Radius(Min) 8×OD of Jacket
Operating Temperature -20 to 60 ℃ （-4 to 140℉）
Storage Temperature -20 to 75 ℃ （-4 to 167℉）
| Performance Characteristics | ||||||||
| Frequency | RL (Min.) | Insertion Loss(Max.) | Propagation Delay (Max.) | Delay Skew(Max.) | NEXT (Min.) | PSNEXT (Min.) | ELNEXT (Min.) | PSELNEXT (Min.) |
| MHz | dB | dB/100m | ns/100m | ns/100m | dB | dB | dB/100m | dB/100m |
| 1 | 20 | 2.1 | 570 | 45 | 74.3 | 72.3 | 67.8 | 64.8 |
| 4 | 23 | 3.8 | 552 | 45 | 65.3 | 63.3 | 55.8 | 52.8 |
| 10 | 25 | 6 | 545.4 | 45 | 59.3 | 57.3 | 47.8 | 44.7 |
| 16 | 25 | 7.6 | 543 | 45 | 56.2 | 54.2 | 43.7 | 40.7 |
| 20 | 25 | 8.5 | 542.1 | 45 | 54.8 | 52.8 | 41.8 | 38.8 |
| 31.25 | 23.6 | 10.7 | 540.4 | 45 | 51.9 | 49.9 | 37.9 | 34.9 |
| 62.5 | 21.5 | 15.4 | 538.6 | 45 | 47.4 | 45.4 | 31.9 | 28.9 |
| 100 | 20.1 | 19.8 | 537.6 | 45 | 44.3 | 42.3 | 27.8 | 24.8 |
| 200 | 18 | 29 | 536.1 | 45 | 39.8 | 37.8 | 21.8 | 18.8 |
| 300 | 17.3 | 36.4 | 536.1 | 45 | 37.1 | 35.1 | 18.3 | 15.3 |
| 400 | 17.3 | 43 | 535.8 | 45 | 35.3 | 33.3 | 15.8 | 12.8 |
| 500 | 17.3 | 45.3 | 535.6 | 45 | 33.8 | 31.8 | 13.8 | 10.8 |
