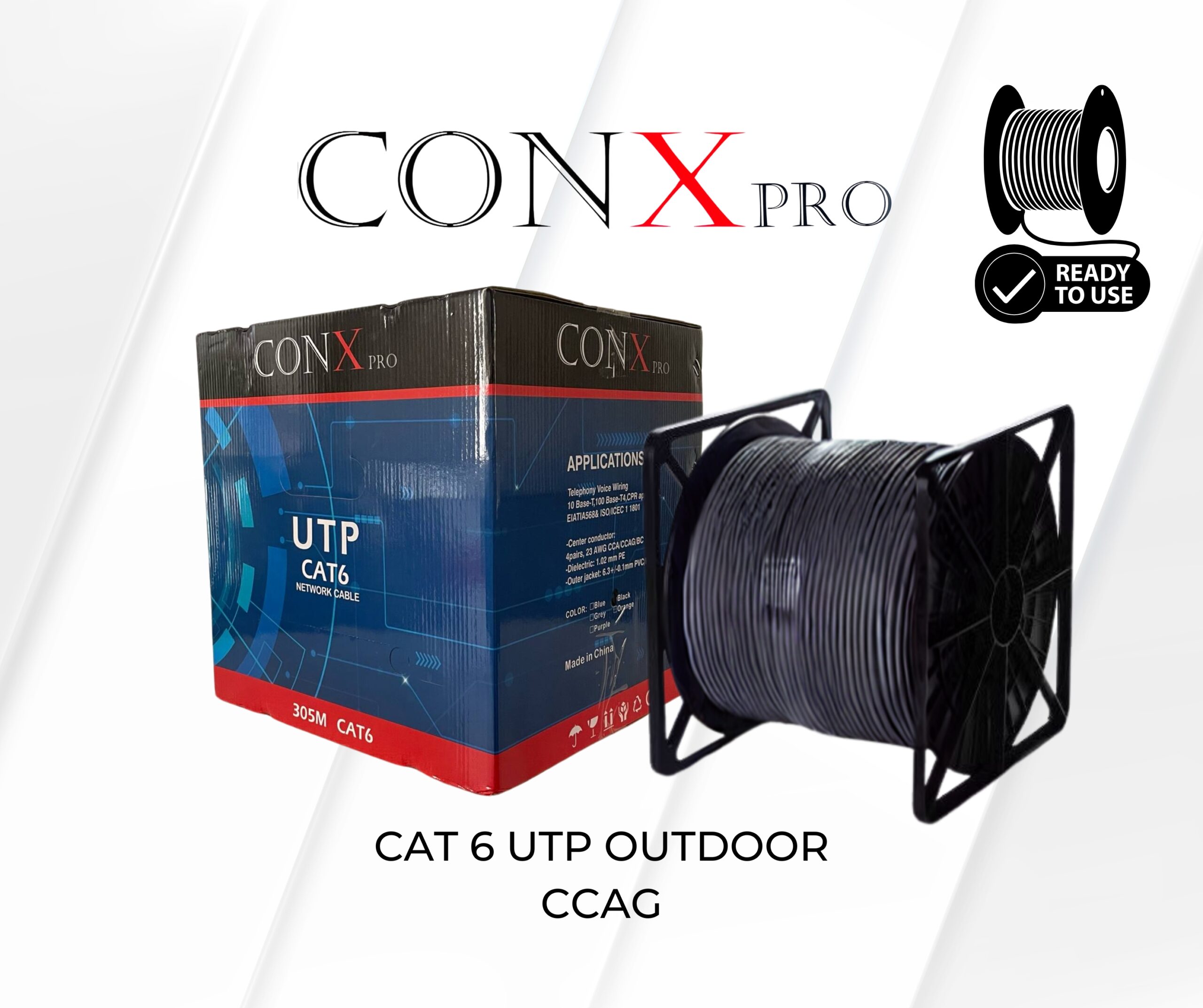

CAT6 OUTDOOR UTP CCAG 305m

135.00

Category:

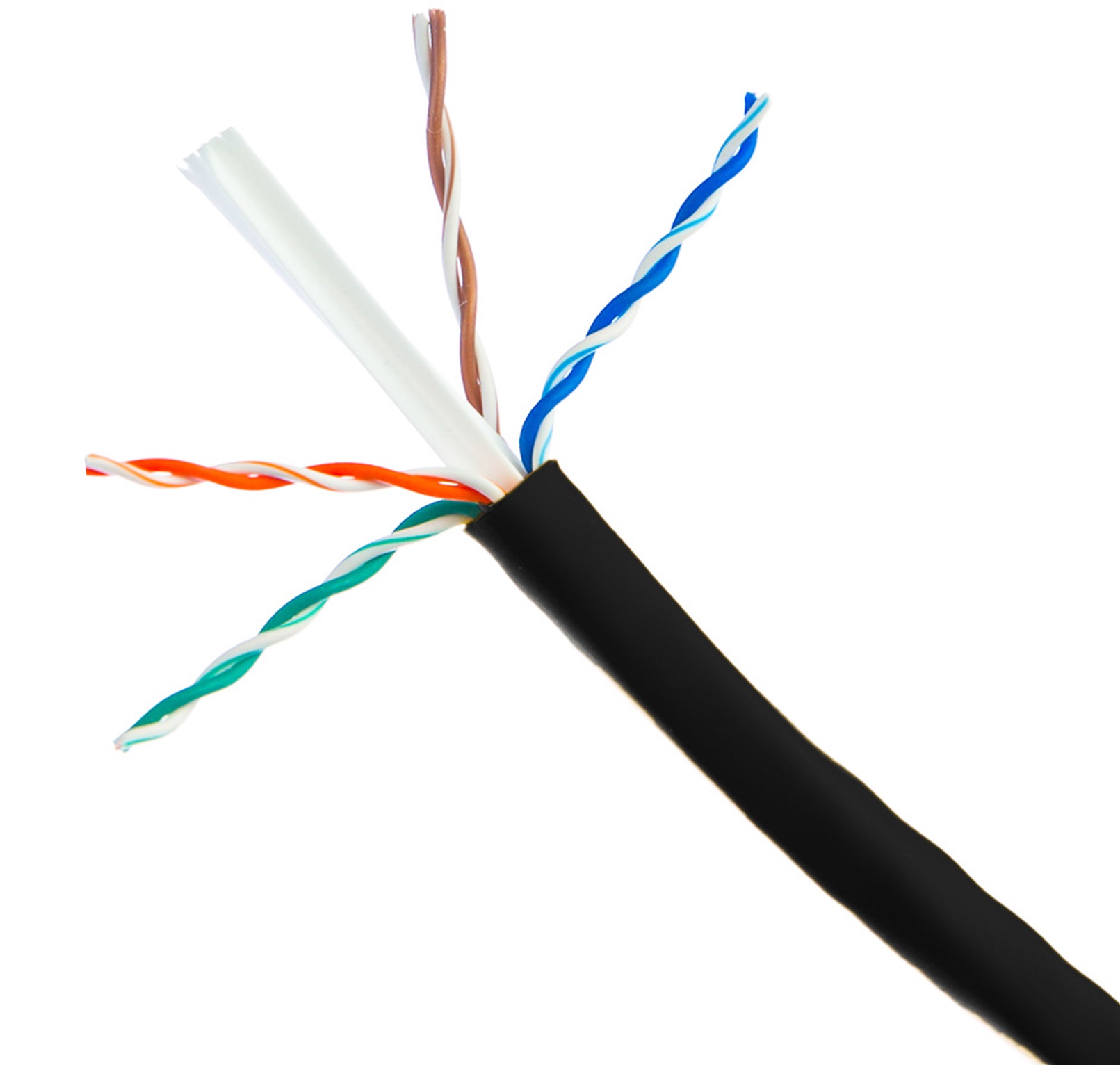

U/UTP CAT6 CCAG PVC/PE Jacket LAN Cable

Test Standard ANSI/TIA-568-C.2、ISO / IEC 11801、IEC 61156、BS EN 50288
Physical Parameters
Conductor Material CCAG
Diameter(mm) 0.570±0.005
Insulation Material HDPE
Diameter(mm) 0.96±0.05
Core color 1.white-blue/blue 2.white-orange/orange
3.white-green/green 4.white-brown/brown
Seperator PE
Sheath Material PVC/PE
Thickness(mm) 0.55±0.05
Diameter(mm) 6.1 ±0.3
Color Optional
Surface printing Letter high(mm) 3.0 ± 0.5
Color Black/White
Print error & Space ≤± 0.5% ,1m
Electrical Parameters
Conductor Resistance (20℃) ≤11 Ω/ 100m
Electrical Resistance Unbalance ( 20℃) ≤2.5 %
Insulation Resistance >5000 MΩ·km
Mutual capacitance of a pair ≤5.6nF/100m
Technical Performance
Feq

MHZ

Zc IL* RL NEXT PS NEXT ELFEXT PS ELFEXT
Ω dB/100m dB dB/100m dB/100m dB/100m dB/100m
1.0 100±15 ≤2.0 ≥20.0 ≥74.3 ≥72.3 ≥67.8 ≥64.8
4.0 ≤3.8 ≥23.0 ≥65.3 ≥63.3 ≥55.8 ≥52.8
8.0 ≤5.3 ≥24.5 ≥60.8 ≥58.8 ≥49.7 ≥46.7
10.0 ≤6.0 ≥25.0 ≥59.3 ≥57.3 ≥47.8 ≥44.8
16.0 ≤7.6 ≥25.0 ≥56.2 ≥54.2 ≥43.7 ≥40.7
20.0 ≤8.5 ≥25.0 ≥54.8 ≥52.8 ≥41.8 ≥38.8
25.0 ≤9.5 ≥24.3 ≥53.3 ≥51.3 ≥39.8 ≥36.8
31.25 ≤10.7 ≥23.6 ≥51.9 ≥49.9 ≥37.9 ≥34.9
62.5 ≤15.4 ≥21.5 ≥47.4 ≥45.4 ≥31.9 ≥28.9
100 ≤19.8 ≥20.1 ≥44.3 ≥42.3 ≥27.8 ≥24.8
200



≤29.0 ≥18.0 ≥39.8 ≥37.8 ≥21.8 ≥18.8
250 ≤32.8 ≥17.3 ≥38.3 ≥36.3 ≥19.8 ≥16.8
Environment Temperature
Store 0~40℃ Work -20 ~ 60℃
Remark
a)  The Cable can pass fluke test.* Indicating for reference only

b)  Insulation Outer Diameter and Sheath Outer Diameter are for reference only.
